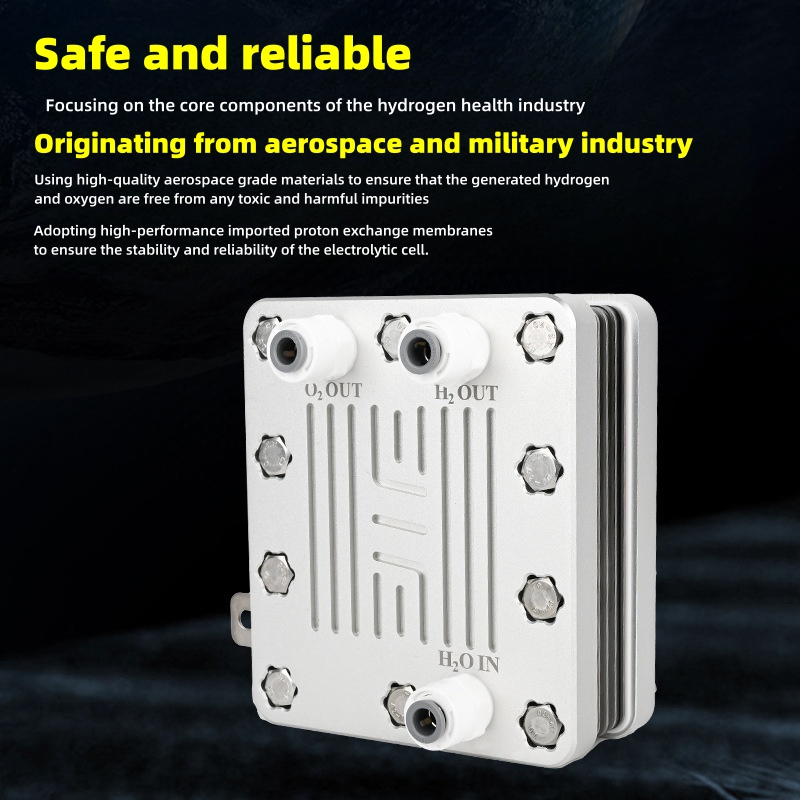

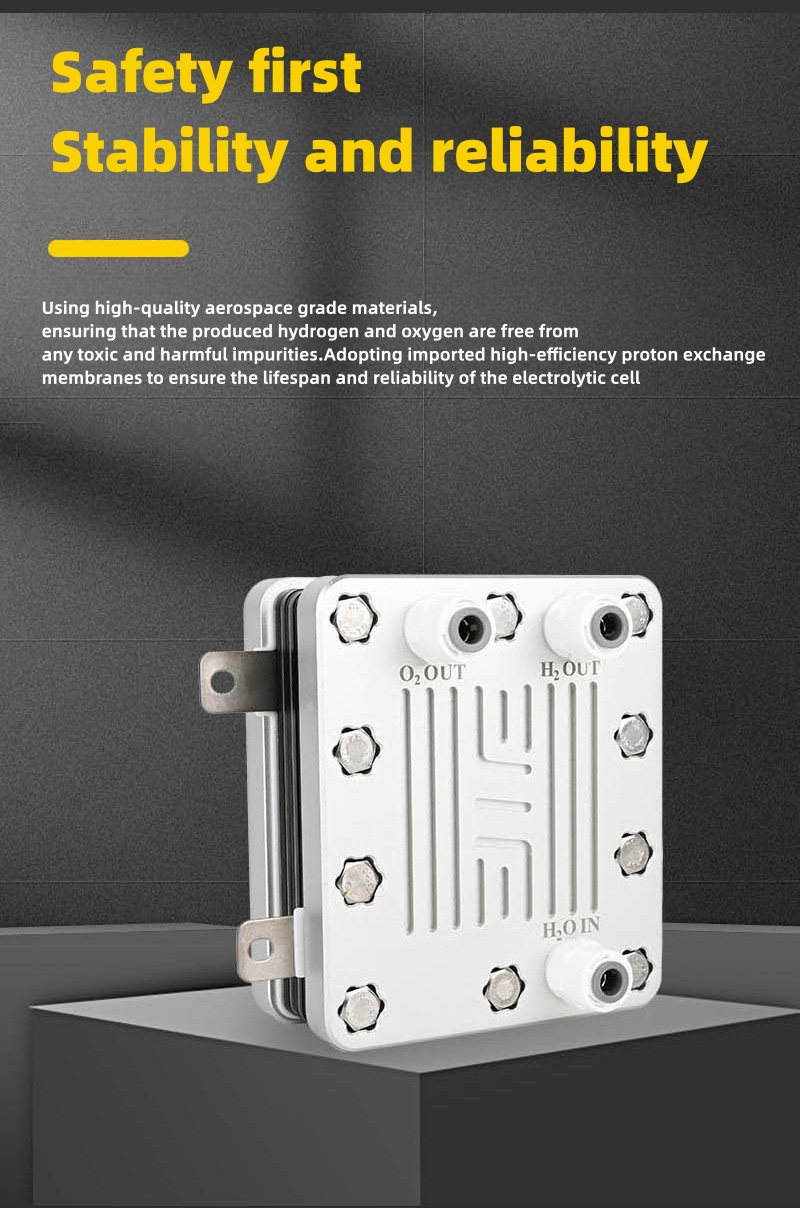

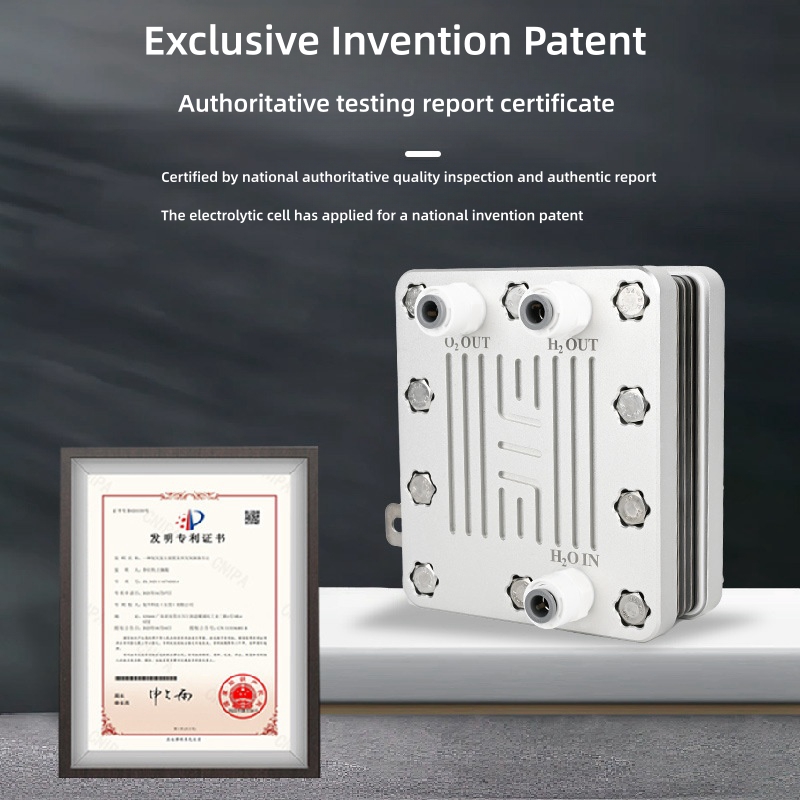

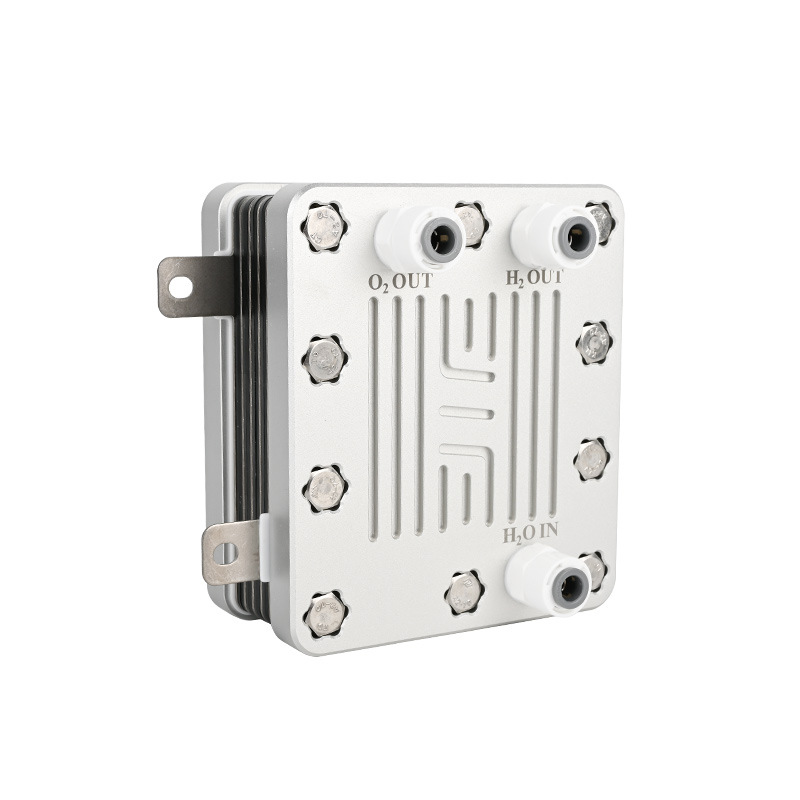

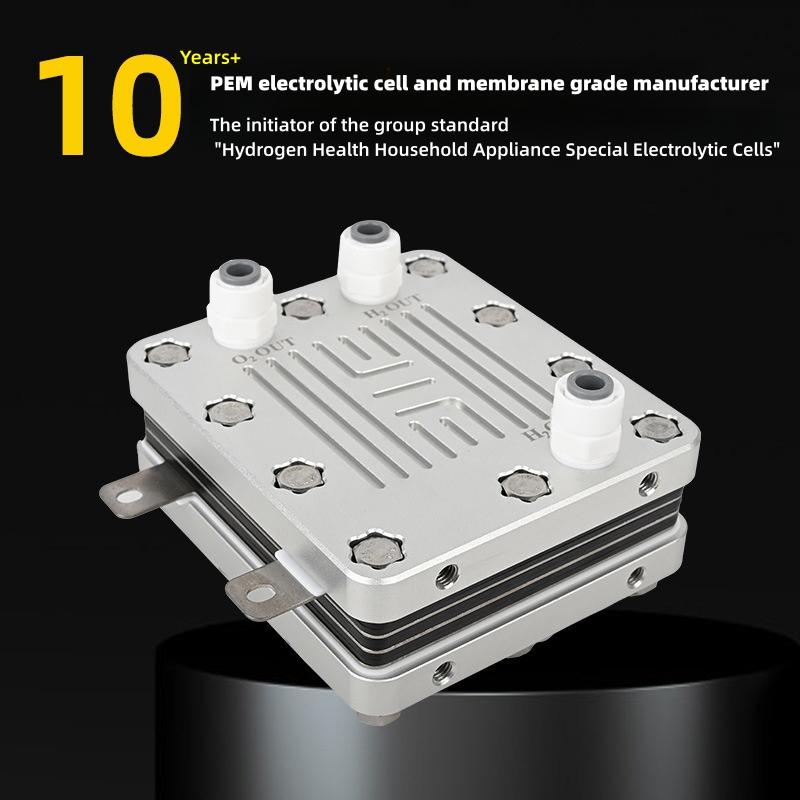

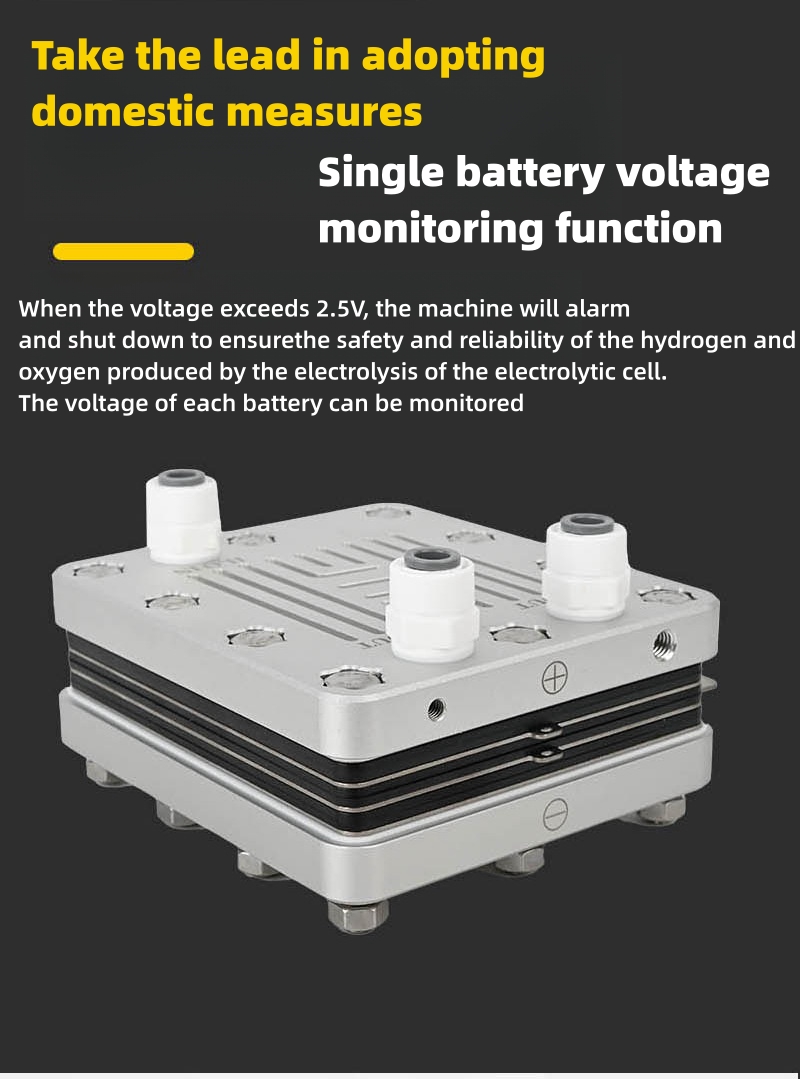

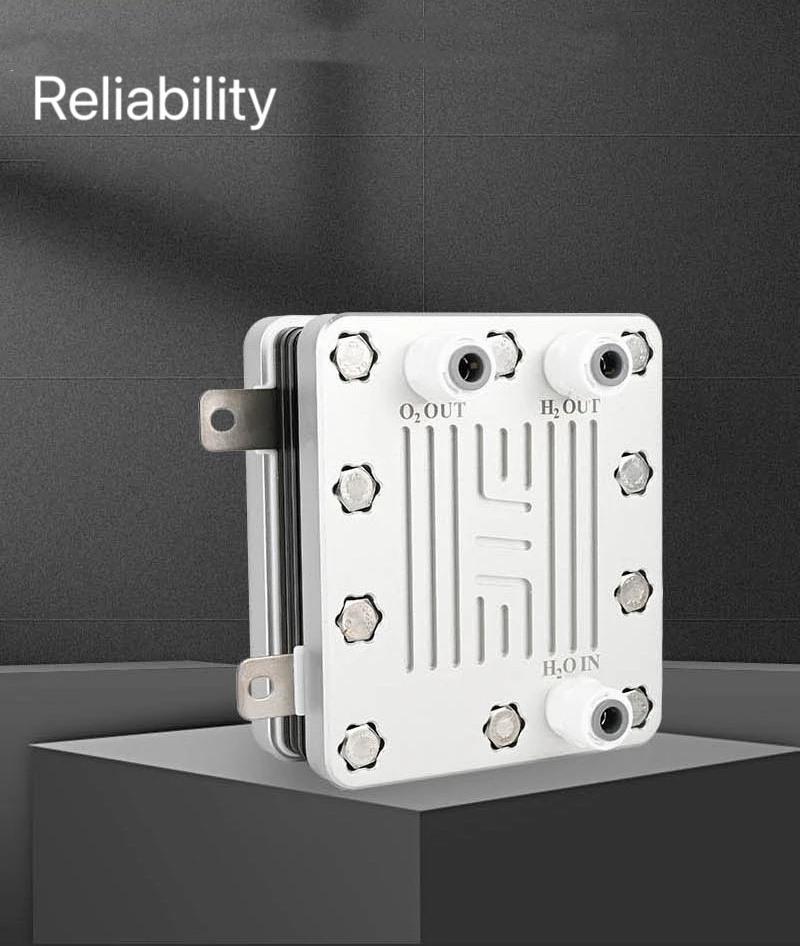

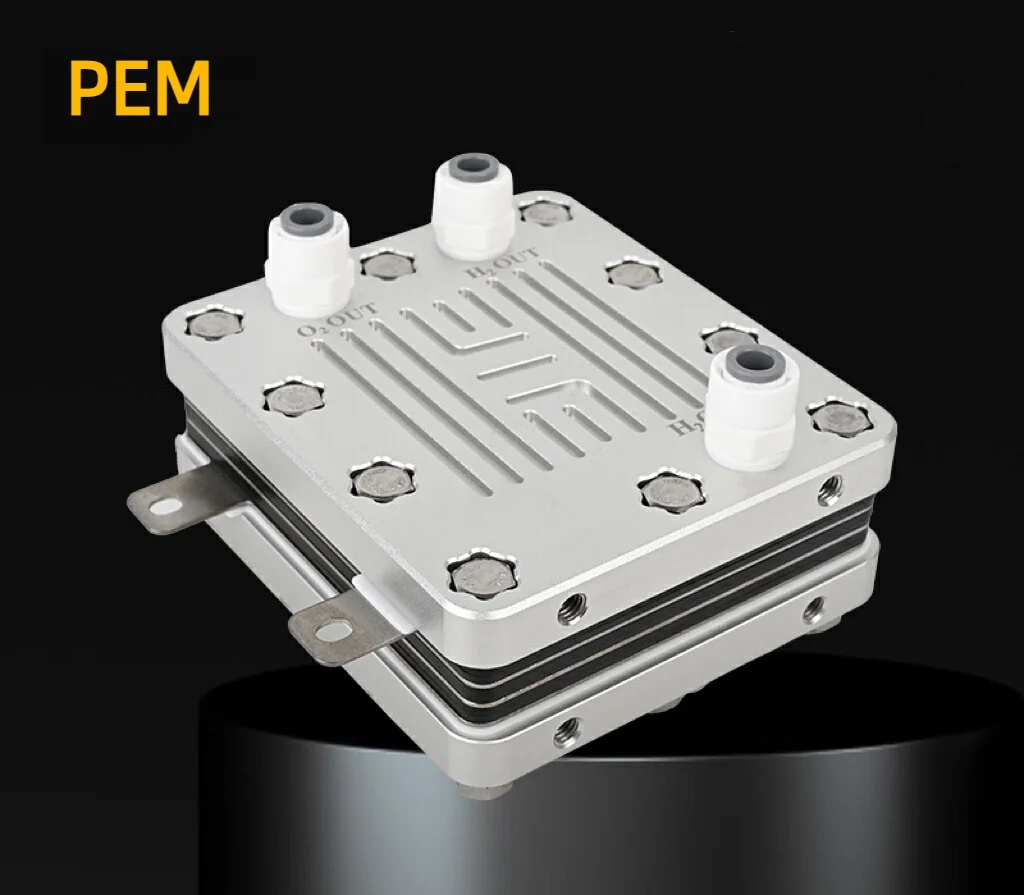

1000ml Hydrogen Electrolyzer PEM Cell

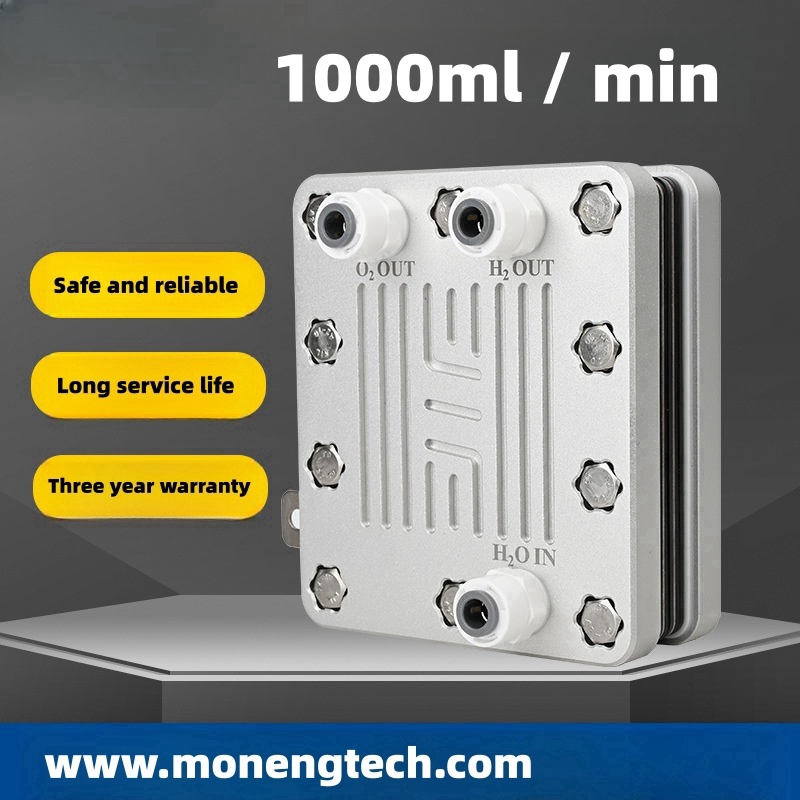

Hydrogen Production: 1000 ml/min

Oxygen prodction: 500 ml/min

Water consumption: ≯120 ml/h

Cyclic Mode: Gravity circulation /

Electrolytic Mode: Pure water electrolysis /

Maximum Pressure: 0.1 - 1.3 Mpa

Water Requirements (TDS): ≦5 ppm

Power Requirements (Rated Current): 25 A

Power Requirements (Output Voltage): 12.5 V

Dimensions (L * W * D): ≯99*113*50 mm

Net Weight: 1.5kg kg

Package size: 180*185*155 mm

Package Weight: 1.61 kg

Other Matters: Cell inlet, hydrogen and oxygen outlet nozzle: 2 tube

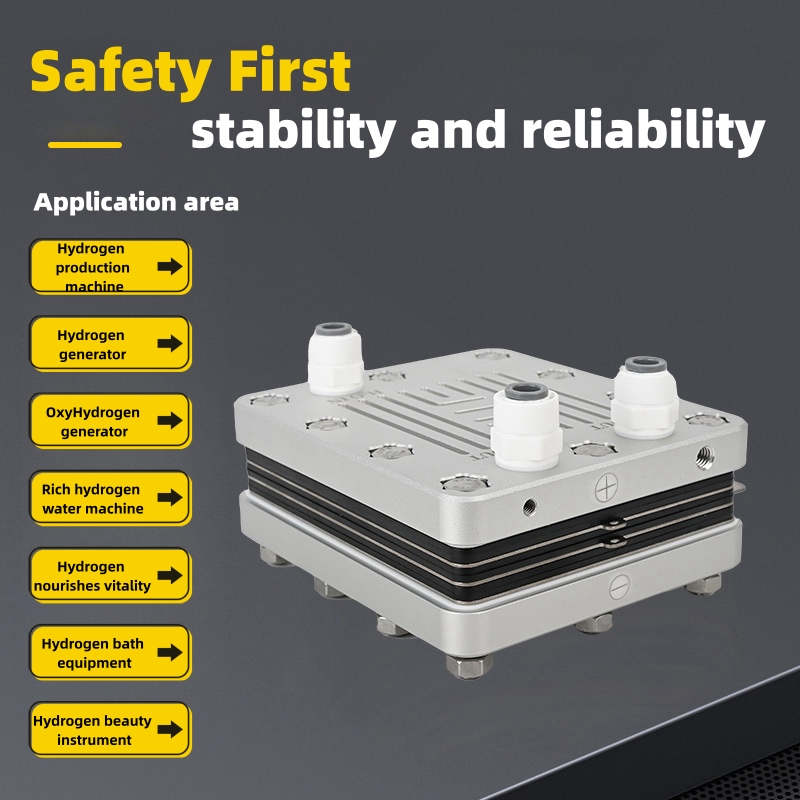

Application Field: Hydrogen generator, Hydrogen generator, Hydrogen oxygen generator,Hydrogen rich water machine, Hydrogen rich bath machine, Hydrogen rich water station, Hydrogen Agriculture

GET A QUOTE

Description

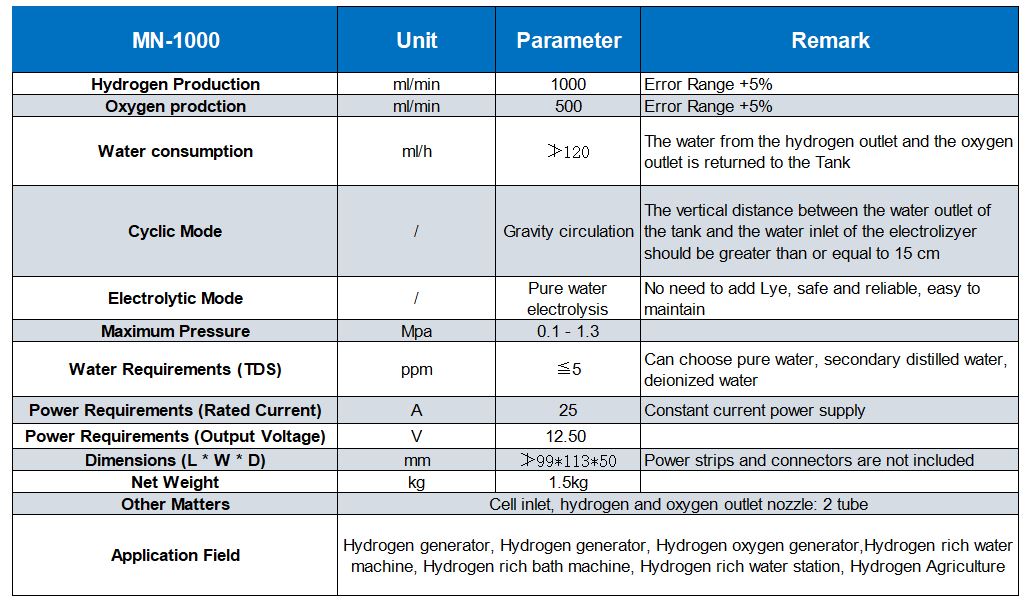

MN-1000	Unit	Parameter	Remark
Hydrogen Production	ml/min	1000	Error Range +5%
Oxygen prodction	ml/min	500	Error Range +5%
Water consumption	ml/h	≯120	The water from the hydrogen outlet and the oxygen outlet is returned to the Tank
Cyclic Mode	/	Gravity circulation	The vertical distance between the water outlet of the tank and the water inlet of the electrolizyer should be greater than or equal to 15 cm
Electrolytic Mode	/	Pure water electrolysis	No need to add Lye, safe and reliable, easy to maintain
Maximum Pressure	Mpa	0.1 - 1.3
Water Requirements (TDS)	ppm	≦5	Can choose pure water, secondary distilled water, deionized water
Power Requirements (Rated Current)	A	25	Constant current power supply
Power Requirements (Output Voltage)	V	12.50

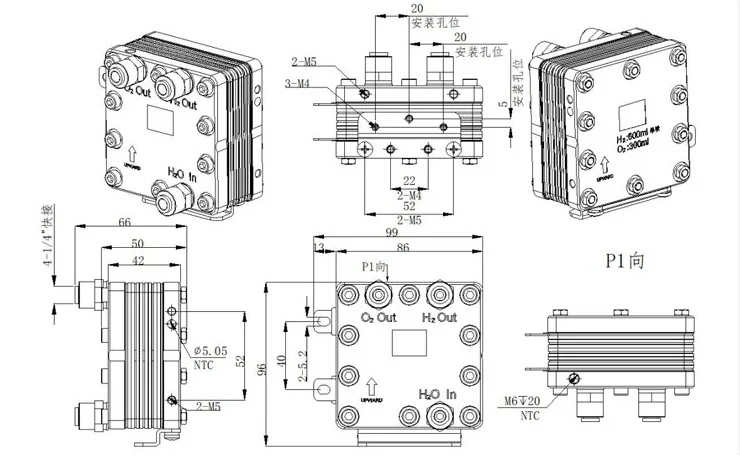

Dimensions (L * W * D)	mm	≯9911350	Power strips and connectors are not included
Net Weight	kg	1.5kg
Package size	mm	180185155
Package Weight	kg	1.61
Other Matters	Cell inlet, hydrogen and oxygen outlet nozzle: 2 tube
Application Field	Hydrogen generator, Hydrogen generator, Hydrogen oxygen generator,Hydrogen rich water machine, Hydrogen rich bath machine, Hydrogen rich water station, Hydrogen Agriculture
