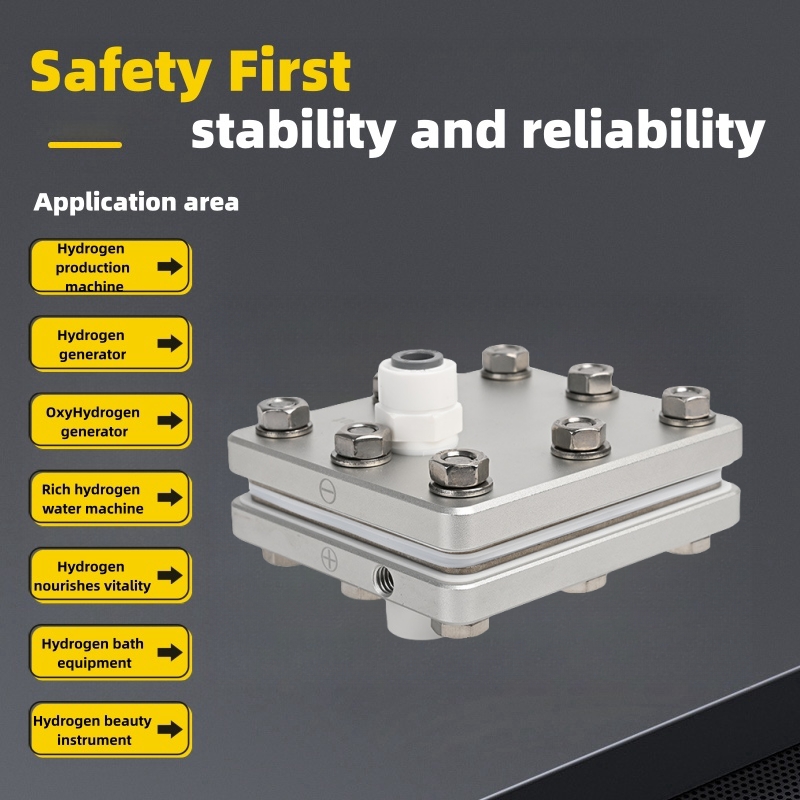

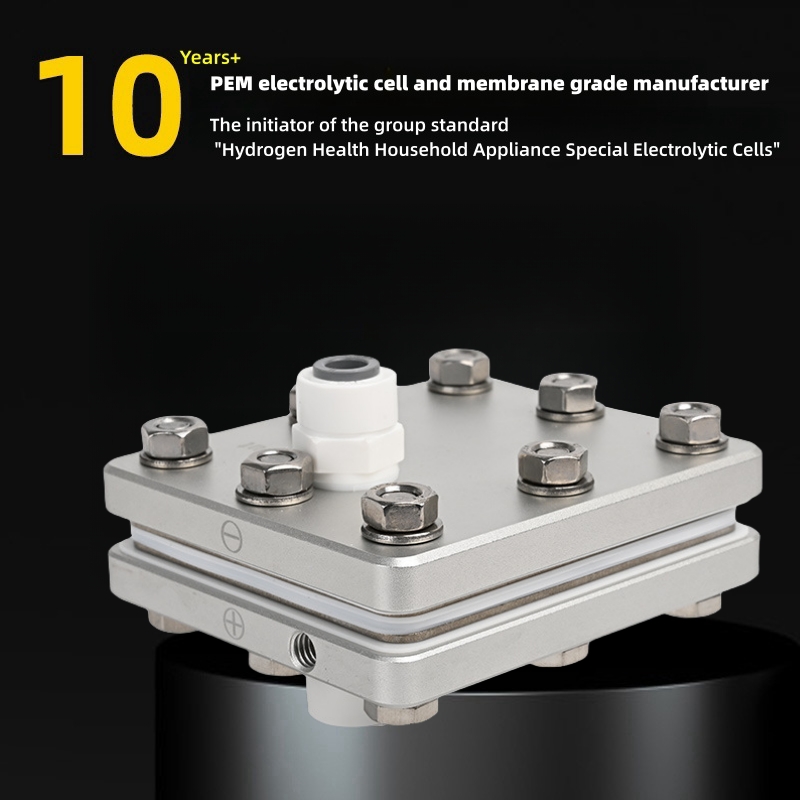

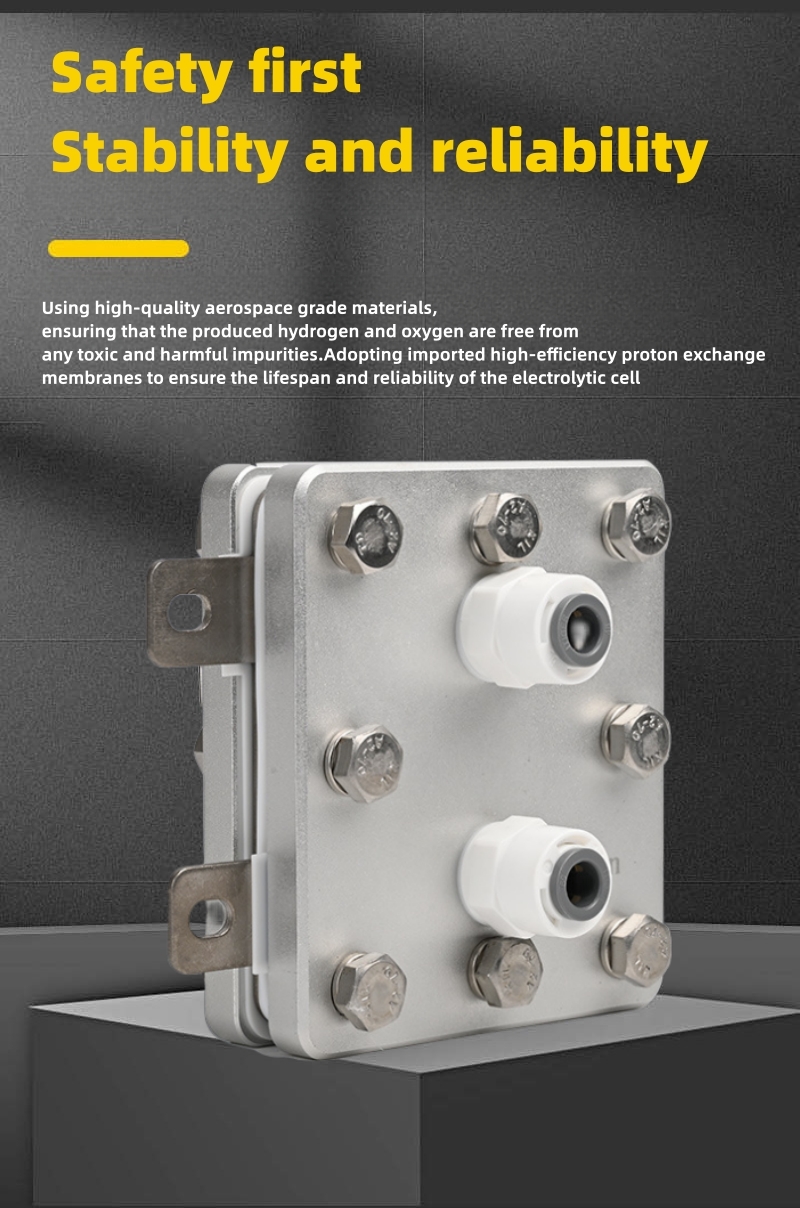

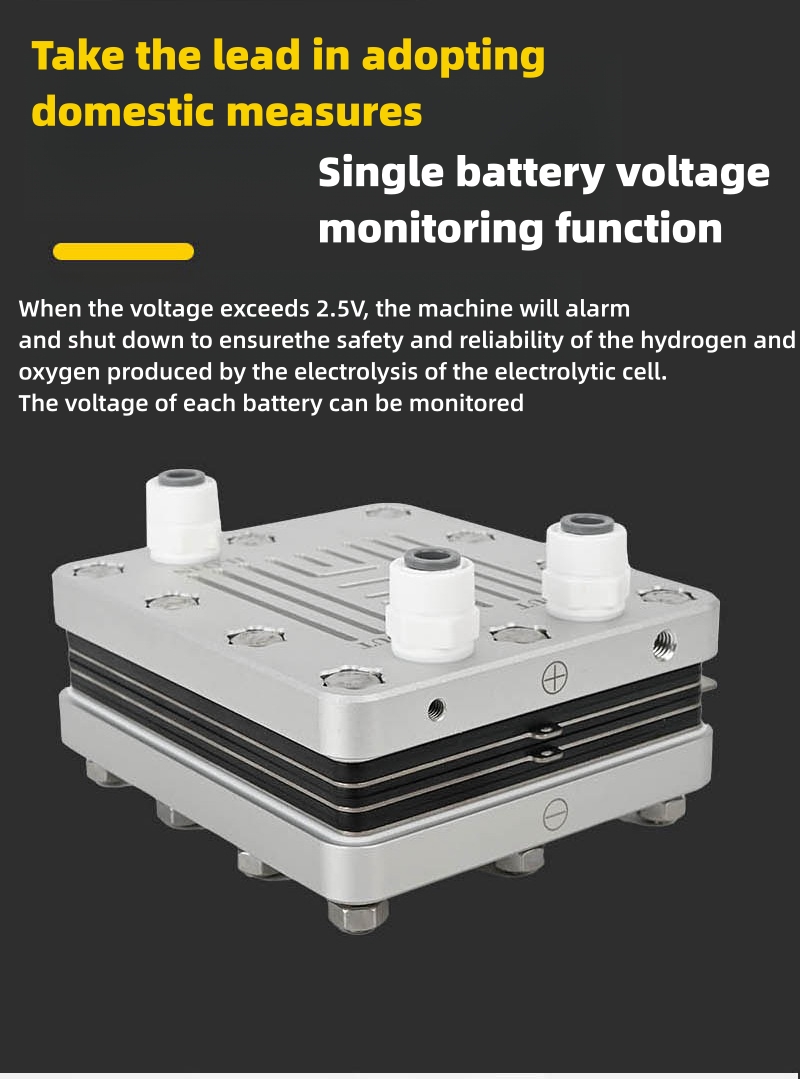

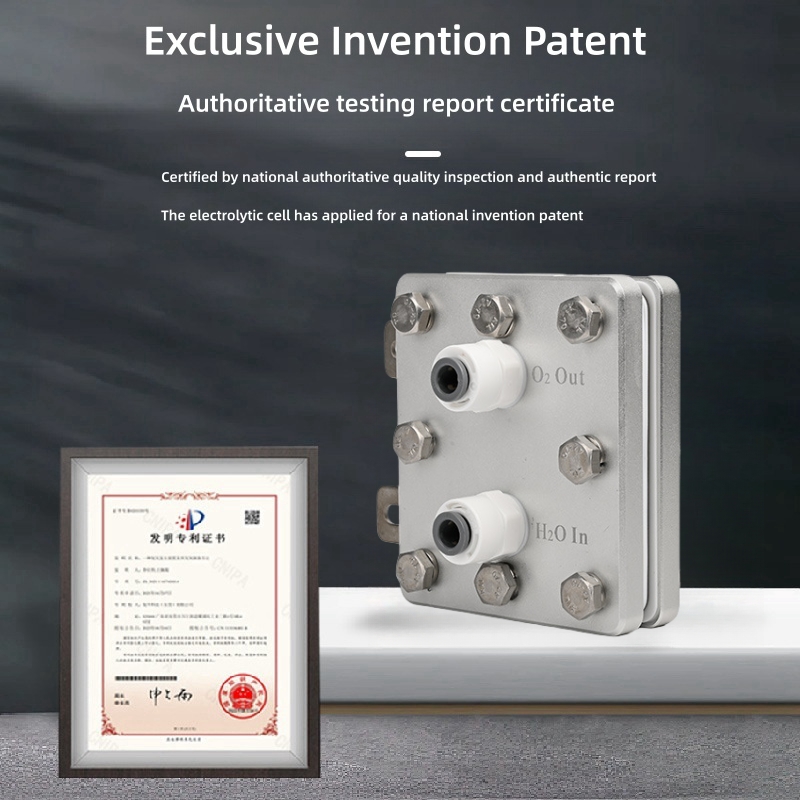

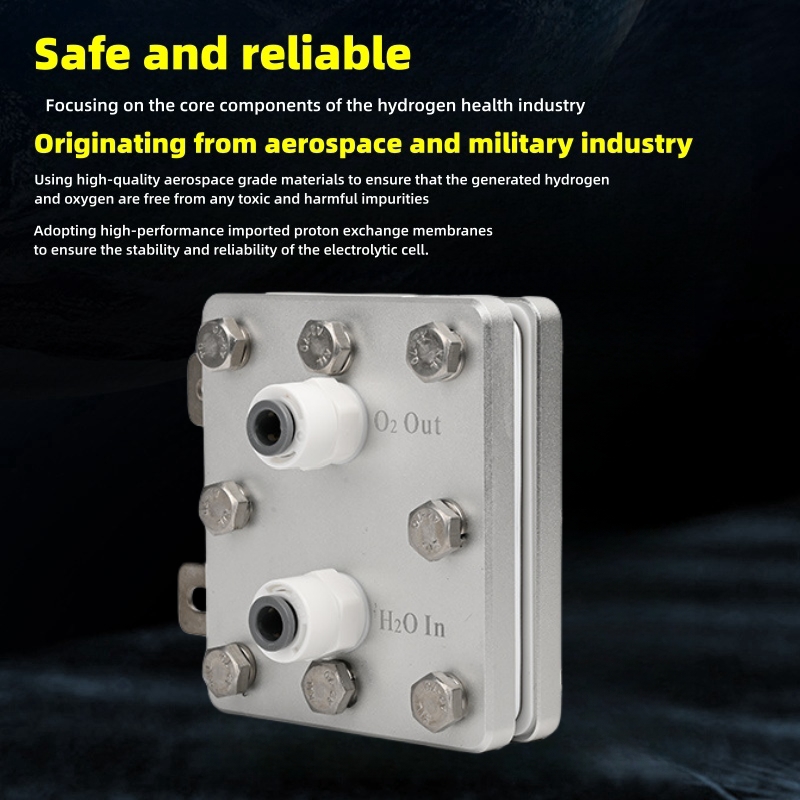

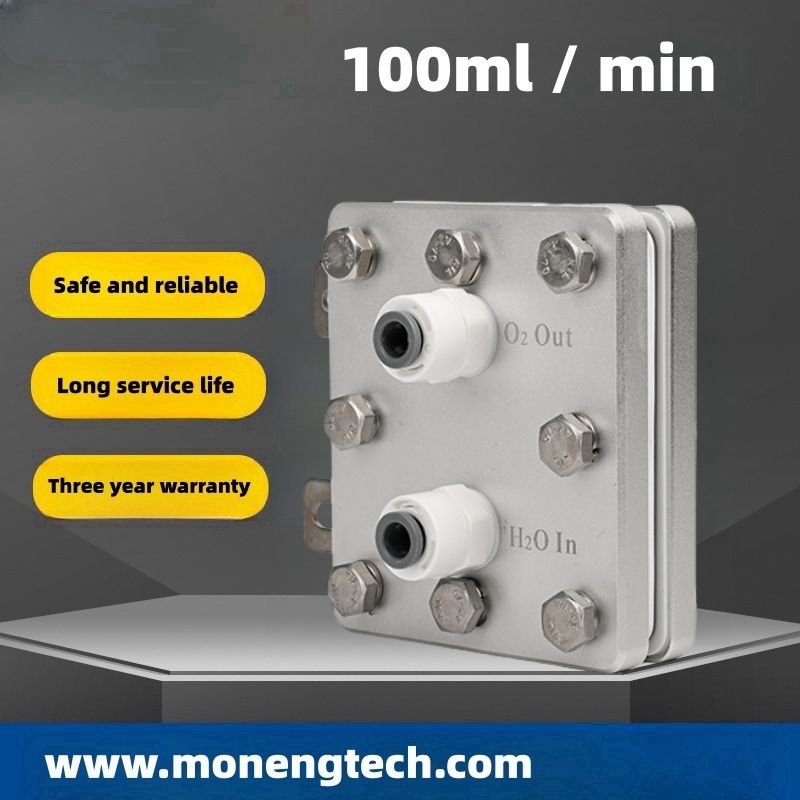

100ml Hydrogen Electrolyzer PEM Cell

Hydrogen Production: 100 ml/min

Oxygen prodction: 50 ml/min

Water consumption: ≯12 ml/h

Cyclic Mode: Gravity circulation /

Electrolytic Mode: Pure water electrolysis /

Maximum Pressure: 1 Mpa

Water Requirements (TDS): ≦5 ppm

Power Requirements (Rated Current): 13 A

Power Requirements (Output Voltage): 3 ~ 5 V

Dimensions (L * W * D): ≯73.5*83.5*23 mm

Net Weight: 0.4 kg

GET A QUOTE

Description

MN-100	Unit	Parameter	Remark
Hydrogen Production	ml/min	100	Error Range +5%
Oxygen prodction	ml/min	50	Error Range +5%
Water consumption	ml/h	≯12	The water from the hydrogen outlet and the oxygen outlet is returned to the Tank
Cyclic Mode	/	Gravity circulation	The vertical distance between the water outlet of the tank and the water inlet of the electrolizyer should be greater than or equal to 15 cm
Electrolytic Mode	/	Pure water electrolysis	No need to add Lye, safe and reliable, easy to maintain
Maximum Pressure	Mpa	1
Water Requirements (TDS)	ppm	≦5	Can choose pure water, secondary distilled water, deionized water
Power Requirements (Rated Current)	A	13	Constant current power supply
Power Requirements (Output Voltage)	V	3 ~ 5
Dimensions (L * W * D)	mm	≯73.583.523	Power strips and connectors are not included
Net Weight	kg	0.4
Other Matters	Cell inlet, hydrogen and oxygen outlet nozzle: 2 tube
Application Field	Hydrogen generator, Hydrogen generator, Hydrogen oxygen generator,Hydrogen rich water machine, Hydrogen rich bath machine, Hydrogen rich water station, Hydrogen Agriculture
