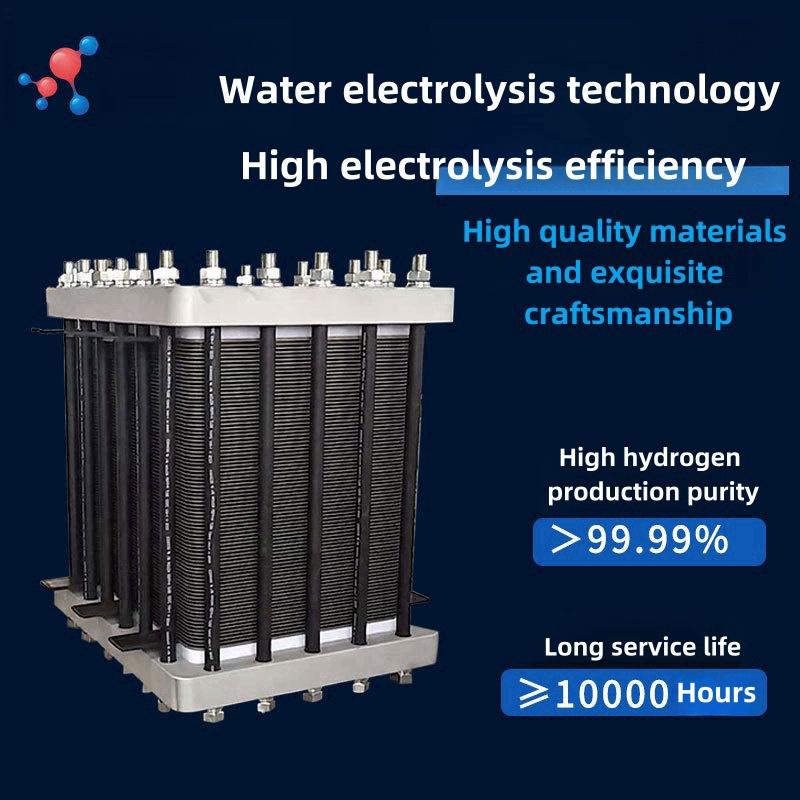

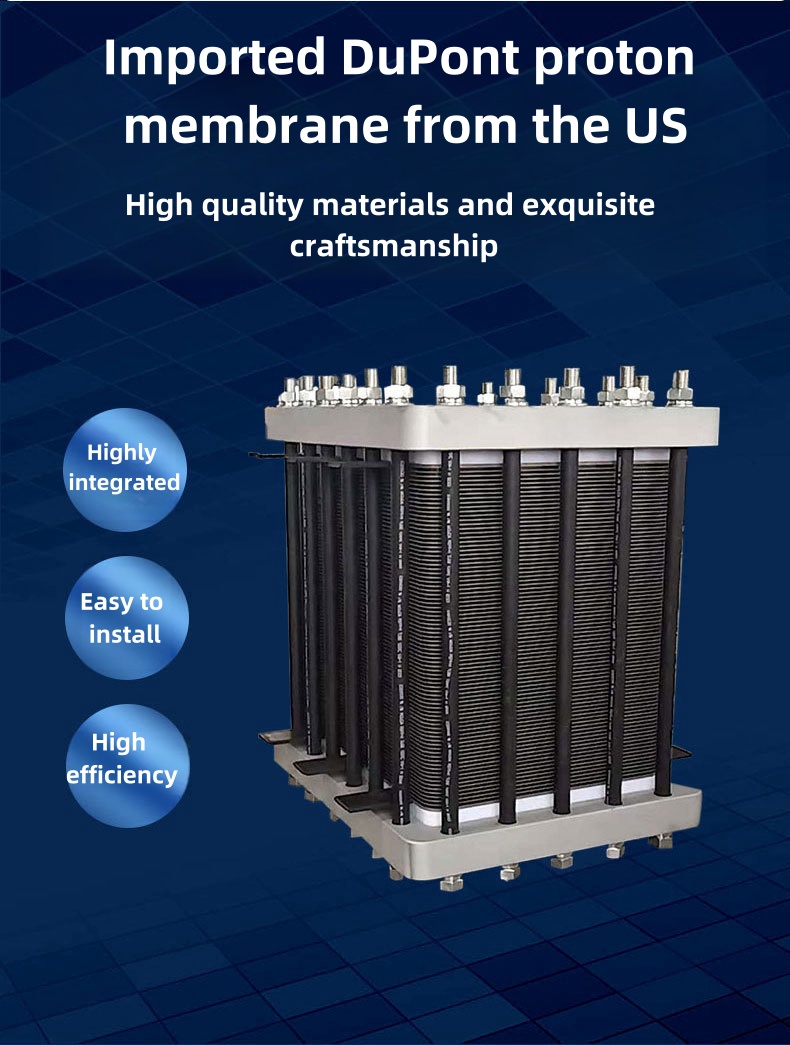

| Moneng - 100Nm ³/ H-type PEM water and electrolysis cell |
| Gas production | Nm³/h | 150 | Hydrogen is mixed with oxygen |
| Hydrogen production | Nm³/h | 100 |
|
| Temperature of circulating water | ℃ | 25-70 |
|
| Water consumption | L/h | 50~100 | Pure Water, deionized water |
| Circular manner | / | Pump circulation |
|
| Hydrogen purity | % | 99.99 |
|
| Water electrolysis method | / | Water electrolysis | Proton exchange membrane electrolysis |
| Maximum stress | Mpa | 3.5 |
|
| TDS | Anode water | PPM | ≤1 | Pure water system |
| Cathode water | PPM | / |
|
| Constant current | A | 4000-4500 |
|
| Dimensions(without lugs) | mm | 970x805x955 |
|
| Dimensions | mm | 970x905x955 |
|
|
| (including lugs and fittings) |
| Weight | kg | / |
|
| Application area | On-site hydrogen production in large scale energy storage,chemical industry,fuel cell system,hydrogen production-hydrogenation station,medicine and other industries
|
