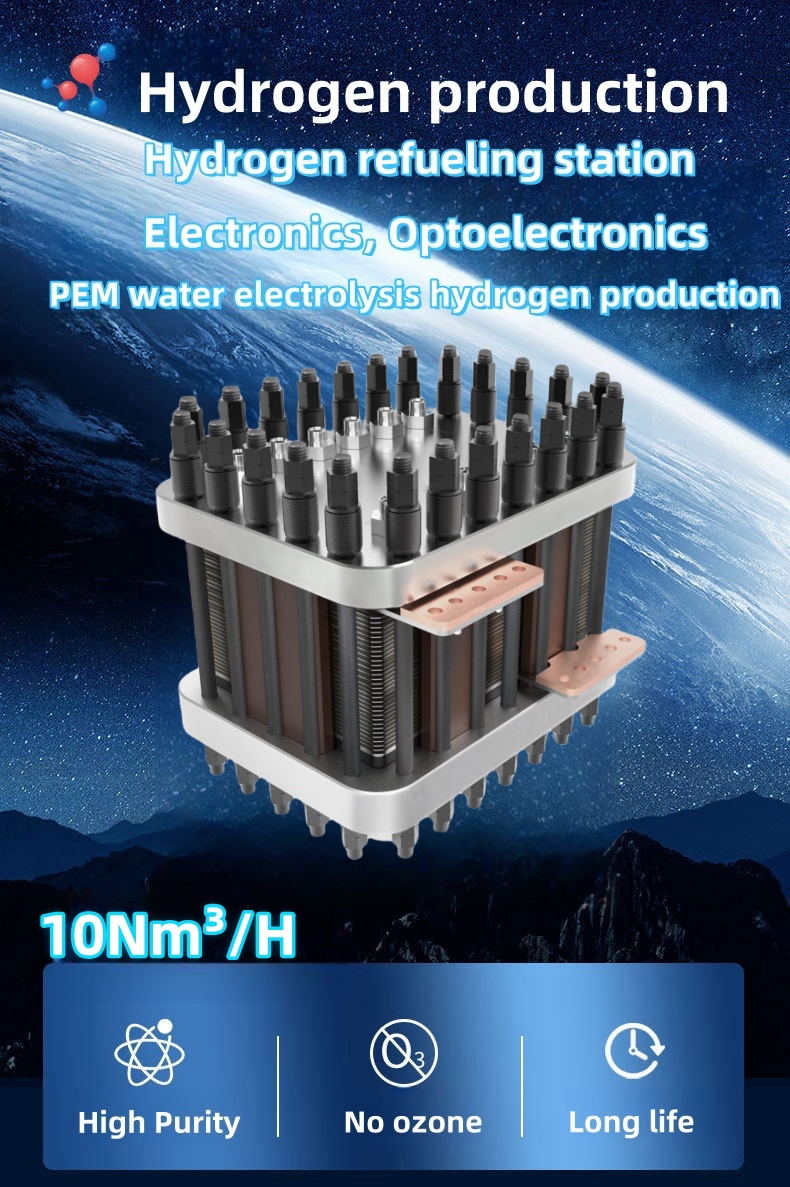

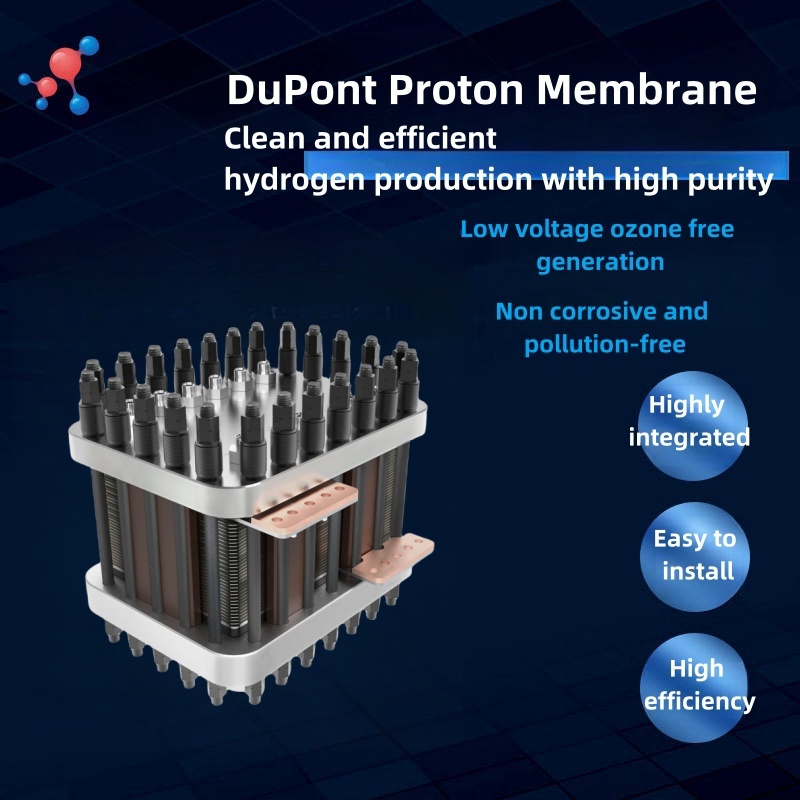

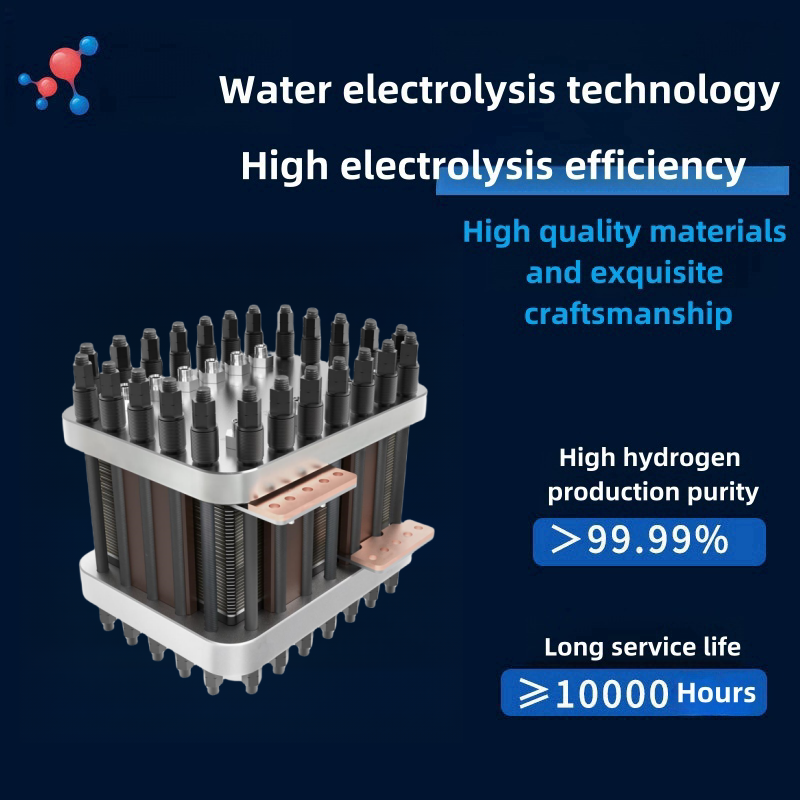

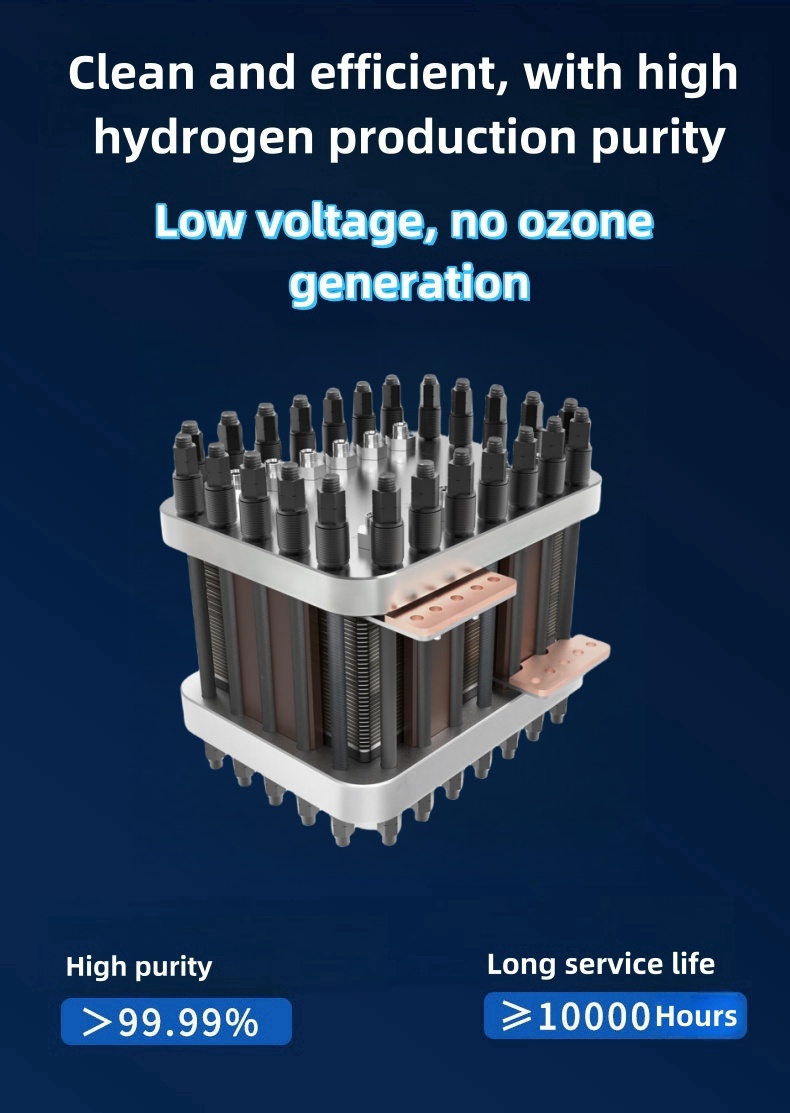

| Moneng - 20Nm ³/ H-type PEM water and electrolysis cell |
| Gas production | Nm³/h | 30 | Hydrogen is mixed with oxygen |
| Hydrogen production | Nm³/h | 20 |
|
| Temperature of circulating water | ℃ | 25-70 |
|
| Water consumption | L/h | 42~10 | Pure Water, deionized water |
| Circular manner | / | Pump circulation |
|
| Hydrogen purity | % | 99.99 |
|
| Water electrolysis method | / | Water electrolysis | Proton exchange membrane electrolysis |
| Maximum stress | Mpa | 3.5 |
|
| TDS | Anode water | PPM | ≤1 | Pure water system |
| Cathode water | PPM | / |
|
| Constant current | A | 680-700 |
|
| Dimensions(without lugs) | mm | 422×335×430 |
|
| Dimensions | mm | 422×375×430 |
|
|
| (including lugs and fittings) |
| Weight | kg | / |
|
| Application area | Fuel cell system testing,fuel cell backup power supply,cogeneration,semiconductor, multi-energy complementary independent micro-network and other fields |
