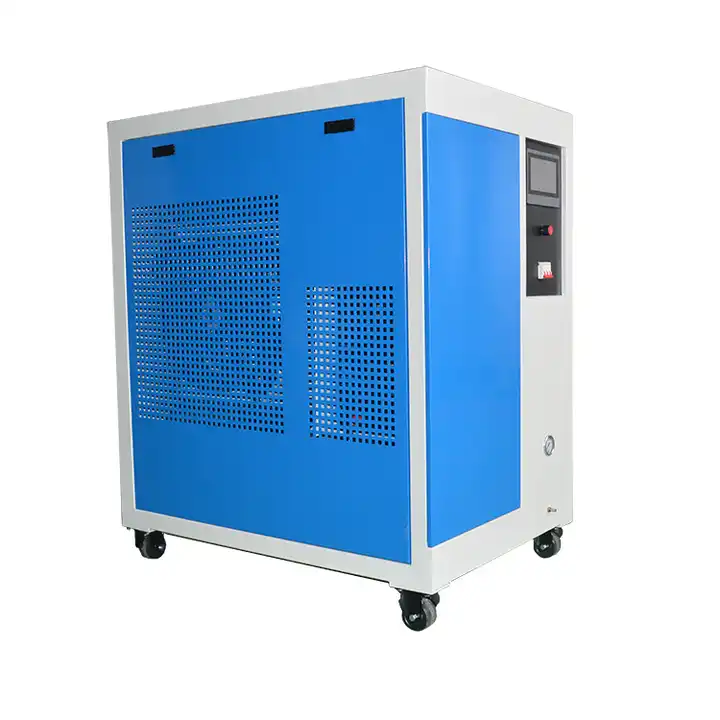

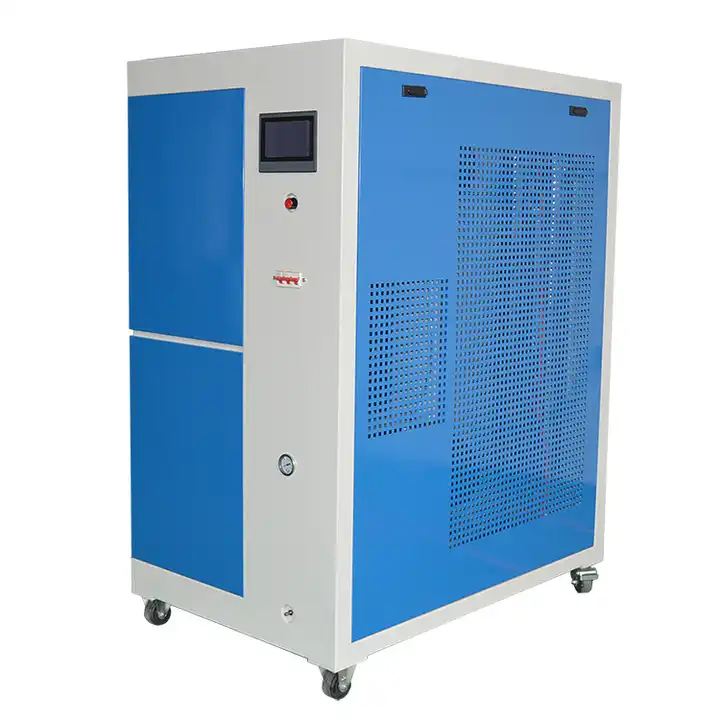

DY3500 Fuel Cell Boiler Oxy-hydrogen Gas Generations hho hydrogen generator for heating boiler

Model: DY3500

Input Voltage: 380V

Rated Power(KW): 10KW

Working Pressure: ≤0.2 (Mpa)

Gas output ±10%: 3500L

Water Consumption: 1.9L/H

Cooling Model: Auto

Water Supply Mode: Purified Water

Flame temperature(℃): 3000℃

Dimension L*W*H(mm): 1200*770*1300

Weight: 300 Kg

GET A QUOTE

Description

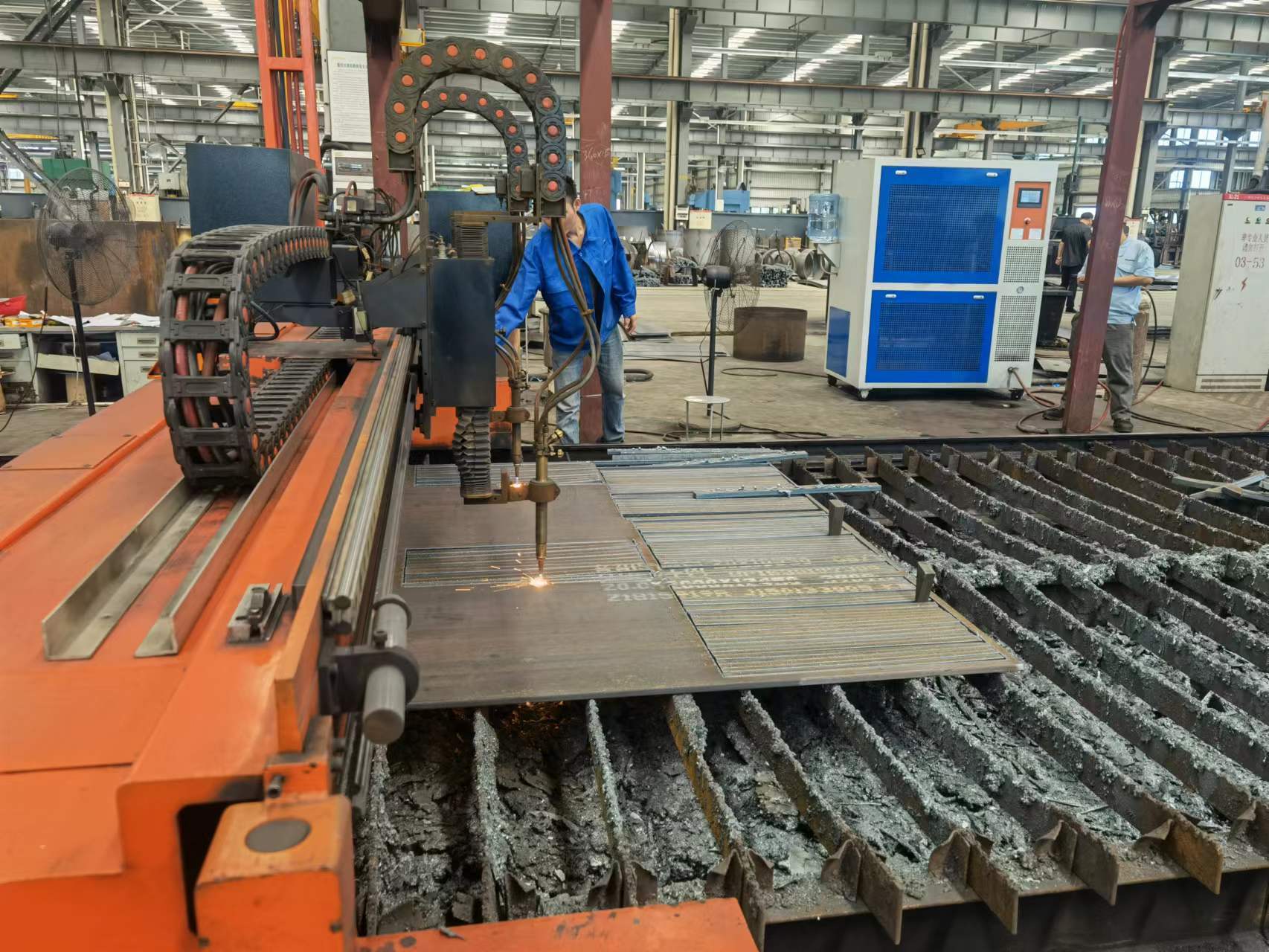

Oxy hydrogen Machine consumes water and electricity, electrolyze water into hydrogen gas and oxygen gas, we can use H2 and O2 as source of flame replacing LPG, Propane, Acetylene fuel or natural gas or other fuel. hho machine(brown gas generator) can be used for welding, cutting, polishing,brazing, glass processing and jewelry processing etc. Also can burst with other fuel together for heating.

Hydrogen Gas Characteristics1.Abundant ResourcesThe raw material of the Hydrogen-oxy Generator is water. Water is the primary resources on earth, three-quarters of the area of the earth’s surface is covered by water. Even in the land, there are also plenty of surface water and groundwater. There is no other known fossil energy which is richer and faciler than water.

2.Green Initiative
This machine only consumes water and electricity when producing oxygen and hydrogen.1 liter water can produce 1860 liters of standard cubic meters of hydrogen and oxygen, with electricity consumption 4kw/h.The Oxyhydrogen gas is colorless, odorless, no CO, no CO2, no COX and no any other poisonous and harmful material produce, and besides, no greenhouse gas generation, was known as water fuel.

3.Safe and reliable
The oxyhydrogen gas is produced through the electrolysis of water which is used immediately what is produced. It is operated under normal atmospheric pressure, without large scales of storage and transportation over long distances. Thus, it is very safe and there is no danger. Hydrogen and oxygen gas is a virulent and insipid will never cause poisoning accidents like other gas. Due to the smaller density than air, even if happened the leak accident, the gas will not gathered together, but rising and spreading rapidly, they won’t harm the operating personnel’s physical health.

4. Reproducibility
The raw material of the Hydrogen-oxy Generator is water and its by-product is also water after combustion. The Oxy-hydrogen gas is a kind of recycled material though in making process or after-use round, it is reproducibility.

5.Variable temperature characteristics
When Hydrogen gas is burned, the flame temperature will changed with the different material of the heated objects. It means it has a different combustion temperature, that’s what we called Variable temperature characteristics. Through the technical variable temperature treatment, Hydrogen and oxygen gas’s flame temperature can changed between 125℃ - 6000℃

6. Implosion characteristics
The Oxy-hydrogen gas is a kind of mixed gas in strict accordance with the substructure of Oxy-hydrogen Moore quantity. It has the unique implosion characteristics that other gas can not realize. When burning it or after the implosion, the Oxyhydrogen gas will form a vacuum and negative pressure in accordance with the volume ratio 1:1860.The testing properties of Oxy-hydrogen’s and other fuel’s implosion differences are as shown to the right.
 7. Catalysis characteristicsDudeleev, a Russian scientist, proved that the reaction of dry carbon monoxide with oxygen is slow. When the gas contained 20 ppm’s hydrogen, it will have a speed-up heterogeneous reaction. Burning of the Hydrogen and oxygen in Oxy-hydrogen is a typical Branch chain reaction process; When form a molecule of water, we will get 2 new active matter (H) withcatalysis characteristics.

Oxyhydrogen Generators' Advantages
Low Cost & Maximum Economy Oxy hydrogen gas is generated only using electricity and pure water. The cost of electricity and water
reduces more than 40% compared with LPG, Propane, and Acetylene fuel.Both economical and practical. Energy Saving more than 30% compared with traditional LPG, Propane, and Acetylene fuel.

High Temperature & high-energy
Oxy-hydrogen flame is straight, little heat loss and high efficiency. The heat of 1kg hydrogen is 34000Kcal, triple gasoline. Hydroxide flame’s temperature is up to 2800
degrees, which is higher than conventional liquid gas. What’s more, the temperature is adjustable.

Maximum Safety
hho Gas is light and dissipates rapidly into the atmosphere compared to acetylene, which is dense and seeks ground level. Multiple safety devices, including overheating and in-sufficient water cut-off switches, will automatically turn off power to ensure the safety of both equipment and user.

A Healthier Working Environment
0 toxic fumes and 0 emissions of carbon based emissions.

Environmentally Friendly
hho Gas produces zero pollution when burning, while hydrocarbon-based fuel gases pollute the environment.
HHO generator applied in diesel generator will help the dieselgenerator,make complete combustion, and increase fuel  efficiency between 10% to 30%, reducing emission minimum by 60%.
