| - Long life, low voltage,small size, light weight - Long service life + strong brand endorsement - Using PEM hydrogen - oxygen separation technology - Low temperature of electrolyzer - Hydrogen production and oxygen production are sufficient - The current density is small, the size of the electrolyzer is small, and the water supply of the electrolyzer is sufficient - Patented core technology - Electrolyzer seal is good,there will be no air leakage, water leakage and other phenomena. - Safe, stable and reliable, high hydrogen purity, no need to add alkalin liquor | ||||||

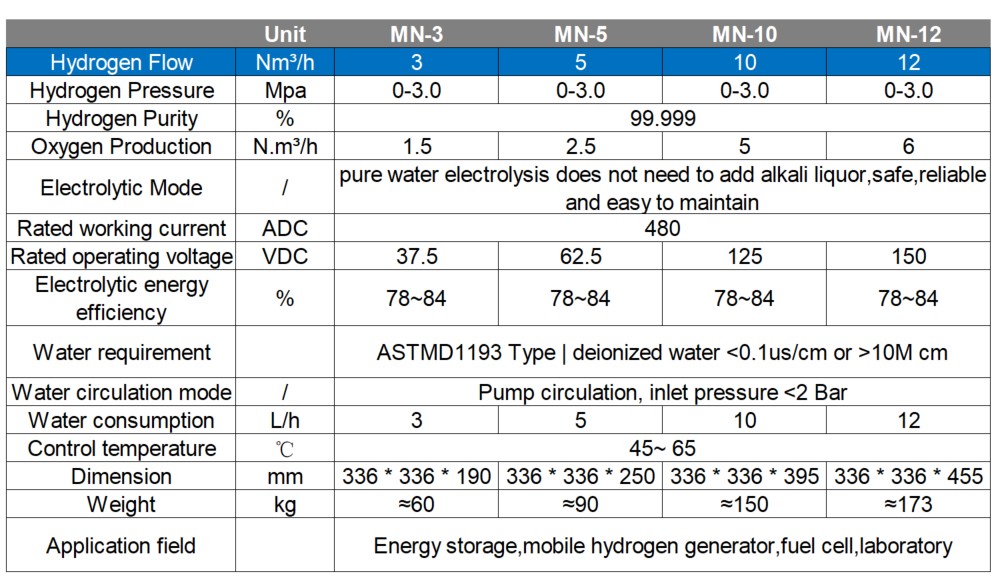

| Items | Product Model | |||||
| Unit | MN-1.5 | MN-3 | MN-5 | MN-10 | MN-12 | |

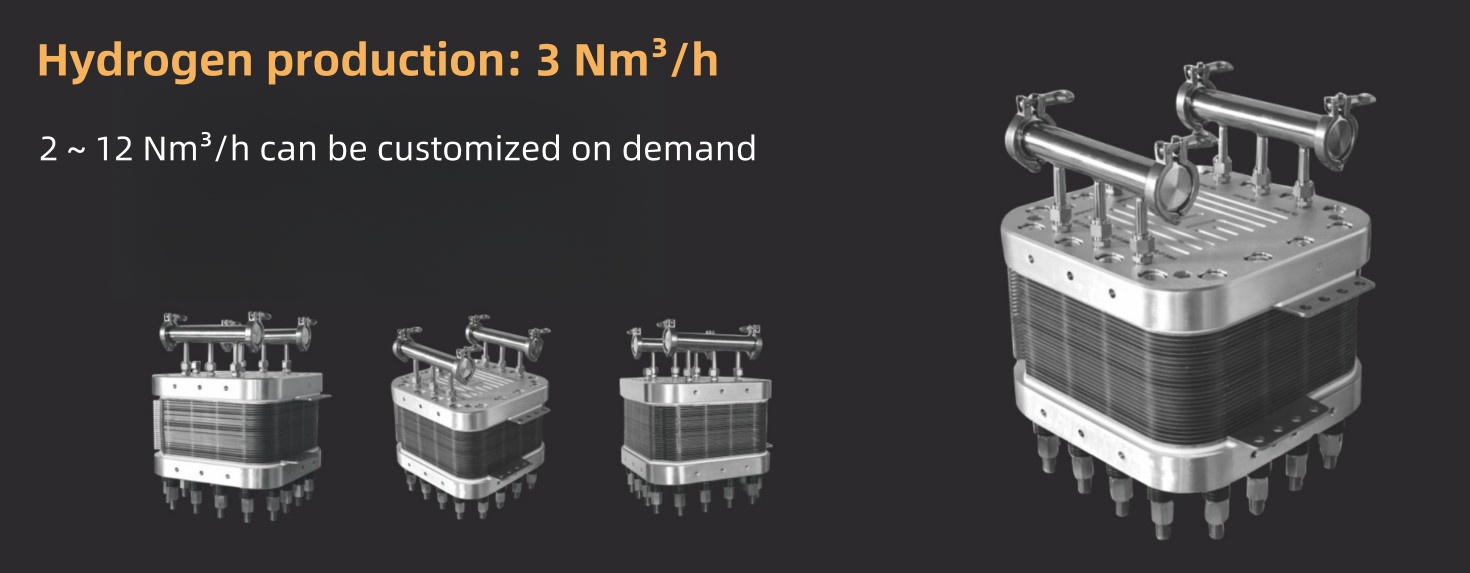

| Hydrogen Flow | Nm³/h | 1.5 | 3 | 5 | 10 | 12 |
| Hydrogen Pressure | Mpa | 0 ~ 3.5 | 0 ~ 3.5 | 0 ~ 3.5 | 0 ~ 3.5 | 0 ~ 3.5 |
| Hydrogen Purity | % | 99.999 | ||||
| Oxygen Production | N.m³/h | 0.75 | 1.5 | 2.5 | 5 | 6 |
| Electrolytic Mode | / | pure water electrolysis does not need to add alkali liquor,safe,reliable and easy to maintain | ||||
| Rated working current | ADC | 140 | 480 | |||
| Rated operating voltage | VDC | 62.5 | 37.5 | 62.5 | 125 | 150 |
| Electrolytic energy efficiency | % | 78~84 | 78~84 | 78~84 | 78~84 | 78~84 |
| Water requirement | ASTMD1193 Type | deionized water <0.1us/cm or >10MΩ cm | |||||
| Water circulation mode | / | Pump circulation, inlet pressure <2 Bar | ||||
| Water consumption | L/h | 1.5 | 3 | 5 | 10 | 12 |
| Control temperature | ℃ | 45~ 65 | ||||
| Dimension | mm | 195 * 195 * 260 | 336 * 336 * 190 | 336 * 336 * 250 | 336 * 336 * 395 | 336 * 336 * 455 |
| Weight | kg | 37 | ≈60 | ≈90 | ≈150 | ≈173 |
| Application field | Energy storage,mobile hydrogen generator,fuel cell,laboratory,semiconductor,optoelectronics and other fields | |||||
