| Items | Product Model |
| Unit | MN-1.5 | MN-3 | MN-5 | MN-10 | MN-12 |
| Hydrogen Flow | Nm³/h | 1.5 | 3 | 5 | 10 | 12 |
| Hydrogen Pressure | Mpa | 0 ~ 3.5 | 0 ~ 3.5 | 0 ~ 3.5 | 0 ~ 3.5 | 0 ~ 3.5 |

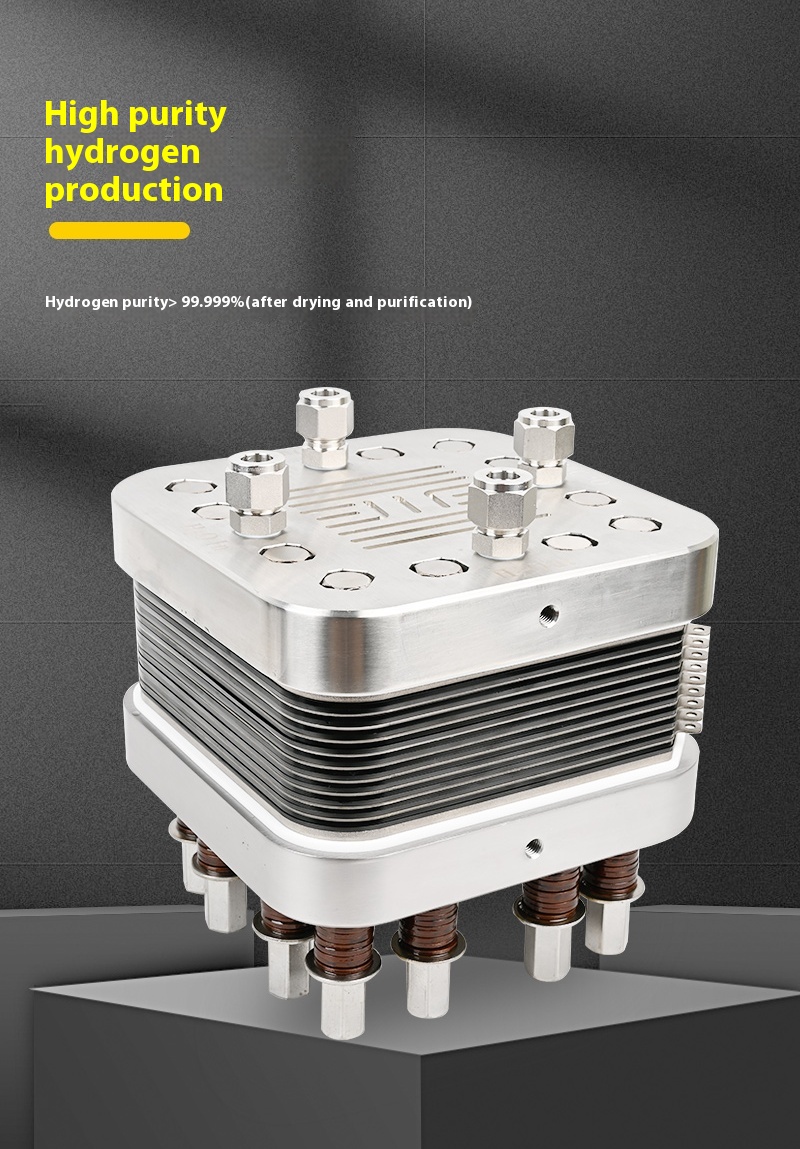

| Hydrogen Purity | % | 99.999 |
| Oxygen Production | N.m³/h | 0.75 | 1.5 | 2.5 | 5 | 6 |
| Electrolytic Mode | / | pure water electrolysis does not need to add alkali liquor,safe,reliable and easy to maintain |
| Rated working current | ADC | 140 | 480 |
| Rated operating voltage | VDC | 62.5 | 37.5 | 62.5 | 125 | 150 |
| Electrolytic energy efficiency | % | 78~84 | 78~84 | 78~84 | 78~84 | 78~84 |
| Water requirement |
| ASTMD1193 Type | deionized water <0.1us/cm or >10MΩ cm |
| Water circulation mode | / | Pump circulation, inlet pressure <2 Bar |
| Water consumption | L/h | 1.5 | 3 | 5 | 10 | 12 |
| Control temperature | ℃ | 45~ 65 |
| Dimension | mm | 195 * 195 * 260 | 336 * 336 * 190 | 336 * 336 * 250 | 336 * 336 * 395 | 336 * 336 * 455 |
| Weight | kg | 37 | ≈60 | ≈90 | ≈150 | ≈173 |
| Application field |
| Energy storage,mobile hydrogen generator,fuel cell,laboratory,semiconductor,optoelectronics and other fields |
